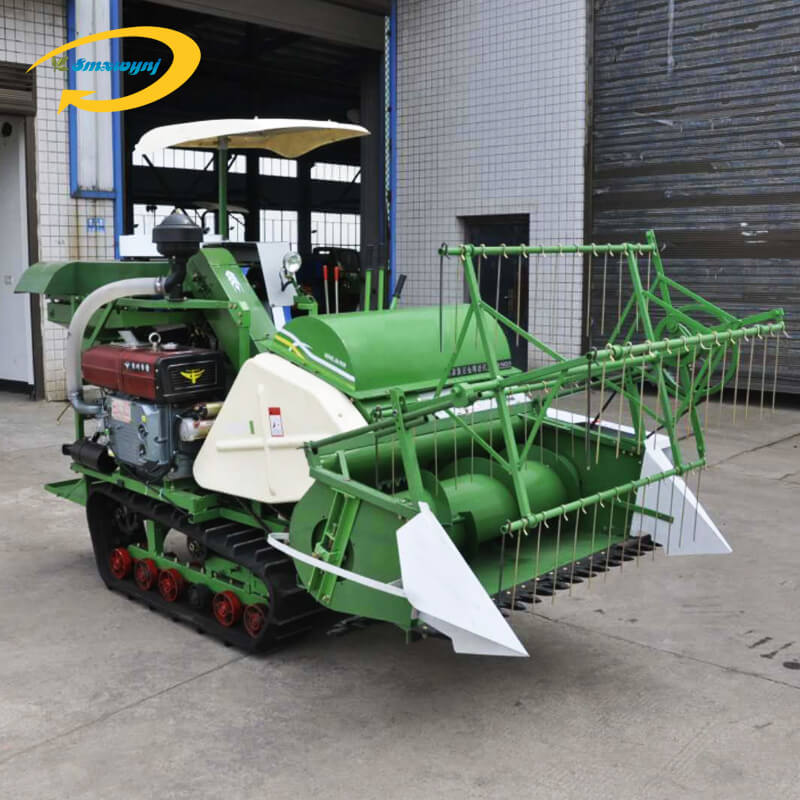

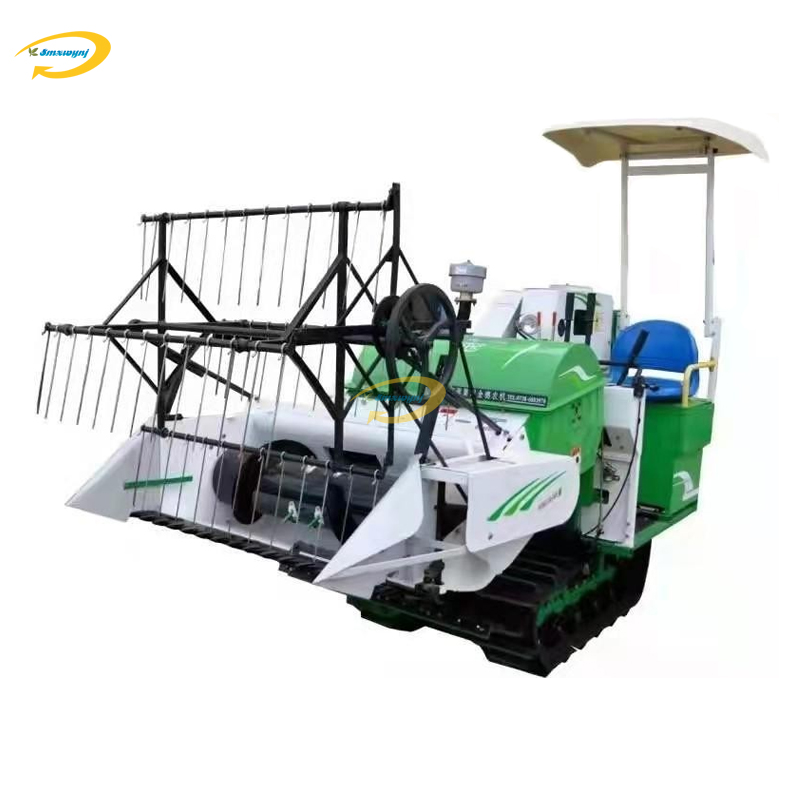

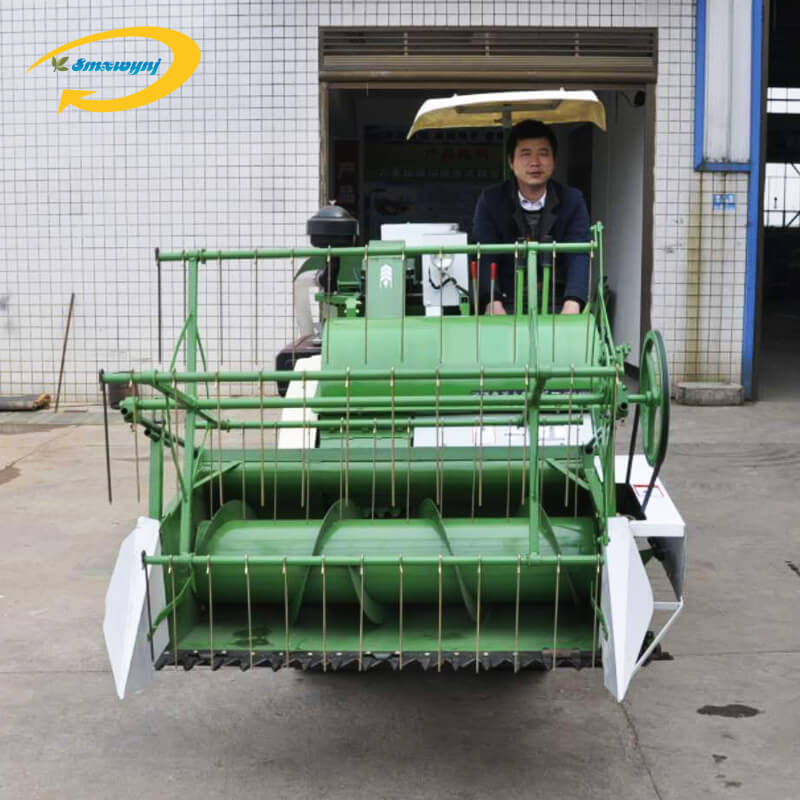

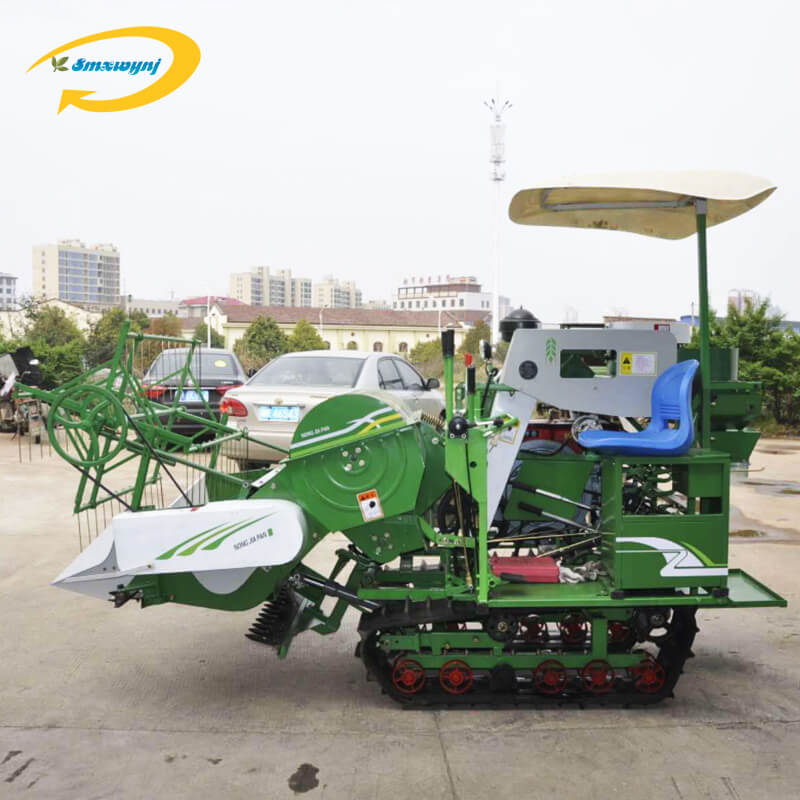

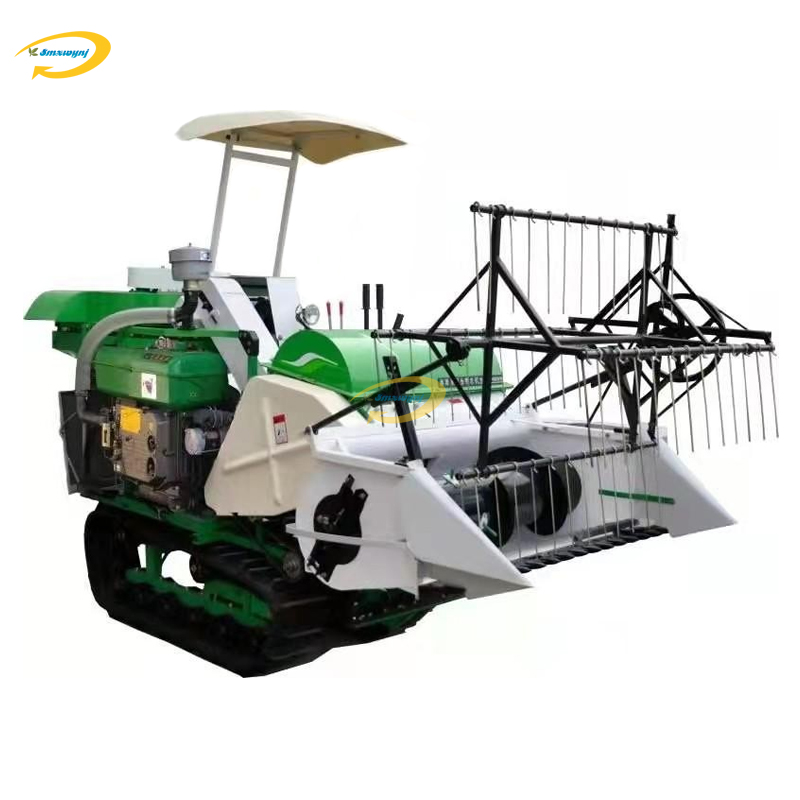

Features of 4LZ-1.0A crawler self-propelled full-feed mini combine harvester.
1. Good quality, low failure rate, high efficiency, preferential prices, short payback period, the investment can be recovered in one season of operation, and it can also make money.
2. Light weight, low grounding pressure, good paddy field passability.
3. Equipped with double cutters, low stubble cutting after harvest, convenient for ploughing, and greatly reduced fuel consumption.
4. Equipped with two-position operating mechanism, safe and reliable operation.
5. The loss rate is small, the impurity rate is low, and the adaptability is wide. The effect is very good whether it is harvesting rice or harvesting wheat.
6. The overall performance is better than other harvesters of the same kind, ranking the leading domestic level.
|
Model |
4LY-1.0 |
|
|
Overall Dimension(L*W*H)mm |
3860+1700*1560(mm) |
|
|
Weight (kg) |
998kg |
|
|
Structural Form |
full feeding crawler walking |
|
|
Feeding Capacity(kg/s) |
>=1.0kg/s |
|
|
Cutting Width(mm) |
1300mm |
|
|
Engine |
Model |
ZS1115M( diesel engine) |
|
|
Power(kw) |
16.2 |
|
|
Speed(rpm) |
2200 |
|
Type/Diameter/Plate Number |
740/4 |
|
|
Fun Type/Diameter/Vane Number |
mixed flow type |
|
|
Work Efficiency(ha/h) |
>=0.1(ha/h) |
|
|
Total Loss Rate(%) |
<=3% |
|
|
Impurity Content(%) |
<=2% |
|
|
Broken Rate(%) |
<=1.5% |
|
|
Threshing Drum. |
Type |
axial flow gear type |
|
|
Number |
1 |
|
|
Diameter(mm) |
550*800(mm) |
|
Grain Thrower Type |
stright |
|
|
Crawler Spec. |
90*38*280(mm) |
|
|
Sunken Plate Type |
fixed grid type |
|
