Ring Mold Feed Pellet Machine

 >  Ring Mold Feed Pellet Machine

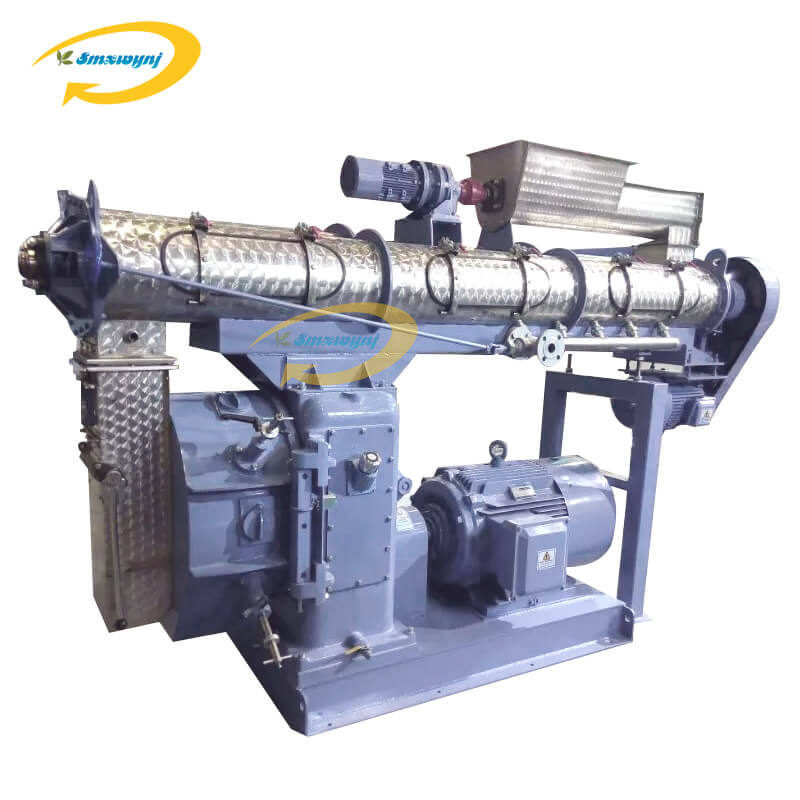

Ring Mold Feed Pellet Machine


Explore our durable ring mold feed pellet machine for consistent feed pellet production. Weiyi Agricultural Machinery guarantees reliability and efficiency.
Description

Features of large feed pellet mill for sale

1. The feed pellet mill is equipped with stainless steel feeder and imported inverter control to guarantee accurate and reliable material feeding.

2. It adopts fully stainless steel conditioner and large open access door for convenient maintenance.

3. Inside the conditioner, there are Food Grade 304 Stainless Steel paddles and paddle shaft, which can guarantee the safety of livestock and poultry feed pellets. There are single-conditioner feed pellet mill and double-conditioner feed pellet mill. Single conditioner type is usually for making poultry feed pellets, while double-conditioner type can make better pellets (but the price is also higher).

4. Stainless steel feeding pipe, door cover and scale board, which are beautiful and anti-corrosion.

5. Ring die feed pellet mills adopt dual-motor V-belt drive system to achieve ideal transmission ratio, high driving torque, steady transimmison, main shaft long service life, brief structure, easy maintenance and low maintenance cost.

6. The support sleeve of main shaft and main case is lined with brass bush to prevent occlusion and is easy to dissassembly.

7. Ring die feed pellet mill adopts automatic grease adding system.

Model

350C

Capacity

3000-5000KG/H

Power

55KW, 380V/50HZ(Siemens)

Two rollers structure

Consist of

1) Rotor system



2) Fabricated Pelleting Chamber: Stainless steel



3) Shear Pin Overload Protection Device



4) Die fitting and manual hoisting device



5) Two sets of Cutters tungsten carbide



6) One set of semi automatic grease jetting device



7) Emergency stop and emergency unloading device
